High Power 650nm Red Optical Transmitter Laser Diode Packaged in Tape Case
◉Features. 650nm Transmitter Low noise, Low distortion Low threshold current Built-in InGaAs/PIN monitor High reliability,Long operation life ◉ Applications. Test Equipment

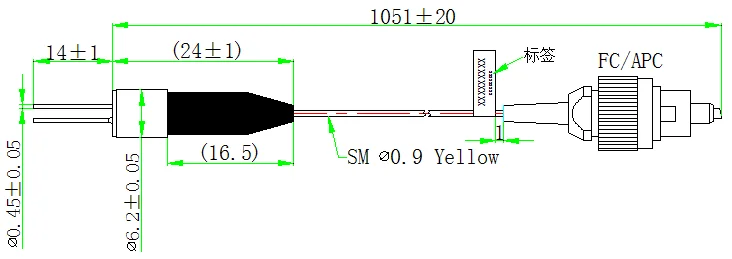

- Product Introduction
Absolute Maximum Ratings (Tc=25℃)
| Parameter |
Symbol
|
Min. | Type |
Max
|
Unit
|
| Reverse Voltage(LD) |
Vr(LD)
|
-
|
-
|
2
|
V
|
| Forward Current(LD) |
If(LD)
|
-
|
-
|
100
|
mA
|
| Reverse Voltage(MPD) |
Vr(PD)
|
-
|
-
|
15
|
V
|
| Forward Current(MPD) |
If(PD)
|
-
|
-
|
2
|
mA
|
| Storage Temperature |
Tstg
|
-40
|
-
|
+85
|
℃
|
| Operating Temperature |
Topr
|
-20
|
-
|
+70
|
℃
|
| Lead Soldering Temperature/Time |
Ts
|
-
|
260/10 or 360/5
|
-
|
℃/S
|
| Fiber Bend Radius |
R
|
30
|
-
|
-
|
mm
|
Transmitter Optical and Electrical Characteristics (Tc=25℃)
| Parameter | Symbol |
Min.
|
Type
|
Max.
|
Unit | Test Condition |
| Threshold Current | Ith |
3
|
-
|
15
|
mA
|
CW
|
|
-
|
-
|
50
|
mA
|
CW,T=70℃
|
||
| Operating Voltage |
Vf |
-
|
1.1
|
1.5
|
V
|
|
| Optical Output Power |
Pf |
2..0
|
-
|
3.0
|
mW
|
CW, If=Ith+20mA
|
| Center Wavelength |
λc |
1540
|
1550
|
1560
|
nm
|
CW, If=Ith+20mA
|
| Rise/Fall Time(20-80%) |
Tr/Tf |
-
|
-
|
120
|
pS
|
If=Ith, Po=Pf, 50 Ohm
|
| Monitor Current |
Im |
100
|
-
|
1000
|
uA
|
CW, If=Ith+20mA
|
| Capacitance |
C |
-
|
10
|
15
|
PF
|
VRD=5V, f=1MHz
|
| Dark Current |
Id |
-
|
-
|
100
|
nA
|
VRD=5V
|
| Spectral Width(-3dB) |
Δλ |
-
|
0.3
|
0.5
|
nm
|
CW, If= Ith+20mA
|
| Slope Efficiency |
SE |
0.10
|
-
|
-
|
W/A
|
CW, If=Ith+20mA
|
| Tracking Error |
TE |
-1.5
|
-
|
1.5
|
dB
|
CW, Im=Constant &
If=Ith+20mA
|
| Bandwidth |
BW |
1.25
|
2.5
|
-
|
GHZ
|
|
| Relative Intensity Noise |
RIN |
-
|
-
|
-130
|
dB/Hz
|
|
