Belycomm PWDM 1550 1310 1490nm Wavelength SC/APC Pigtail Connector For CATV FTTH Laser Diode
Features： High responsivity, Low return loss Low dark current, Low capacitance High reliability And Long operation life
- Product Introduction
Absolute Maximum Ratings (Tc=25℃)
| Parameter | Symbol |
Min. |
Type |
Max. |
Unit |
| Saturation power | Ps |
3 |
- |
- |
dBm |
| Forward Current |
If |
- |
- |
10 |
mA |
| Reverse Voltage |
Vr |
- |
- |
15 |
V |
| Operating Case Temperature |
Top |
-40 |
- |
+85 |
ºC |
| Storage Temperature |
Tstg |
-40 |
- |
+85 |
ºC |
| Storage Temperature |
- |
- |
260/10 or 360/5 |
- |
ºC/Sec |
Transmitter Optical and Electrical Characteristics (Tc=25℃)
| Parameter | Symbol |
Min |
Type |
Max |
Unit |
Test condition |
|
Transmission working wavelength |
λ1 |
1540 |
1550 |
1650 |
nm |
|
|
Reflected working wavelength |
λ2 |
1260 |
1310 |
1360 |
nm |
|
| λ3 |
1480 |
1490 |
1500 |
nm |
|
|
| Dark Current |
Id |
|
|
1 |
nA |
Vr=5V |
| Responsivity |
R |
0.90 |
|
|
A/W |
λ=1550nm,Po=0dBm |
| Optical Return Loss(@Com) |
RL |
40 |
|
|
dB |
λ=1550nm, Po=0dBm |
|
Transmission isolation |
ISO1 |
30 |
|
|
dB |
λ=1310nm&1490nm |
|
Reflection isolation |
ISO2 |
18 |
|
|
dB |
λ=1550nm |
|
Reflection insertion loss |
IL |
|
|
0.7 |
dB |
λ=1310nm&1490nm |

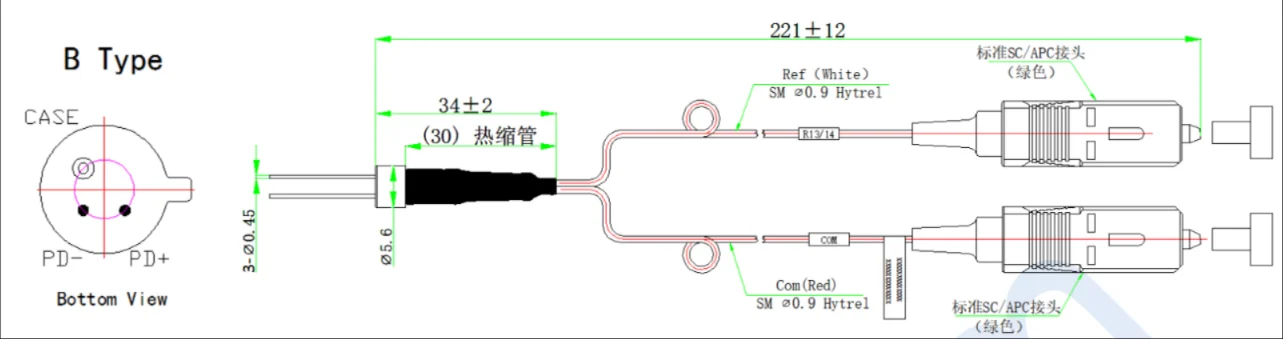

Outline Diagram and Pin Assignment
