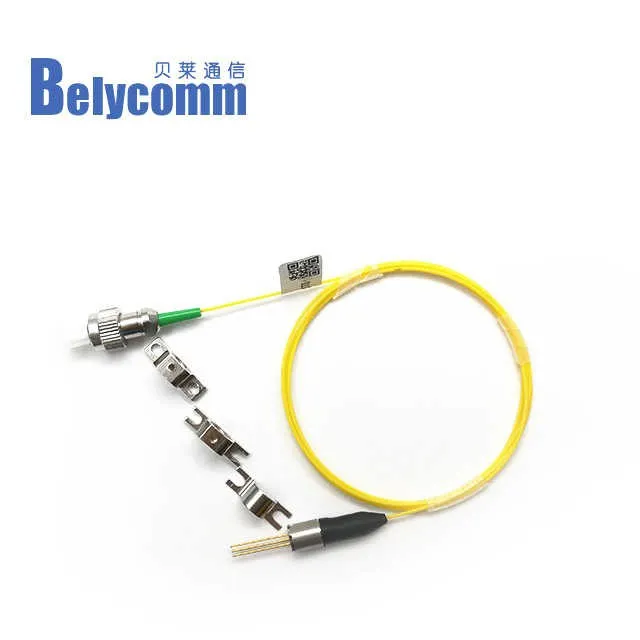

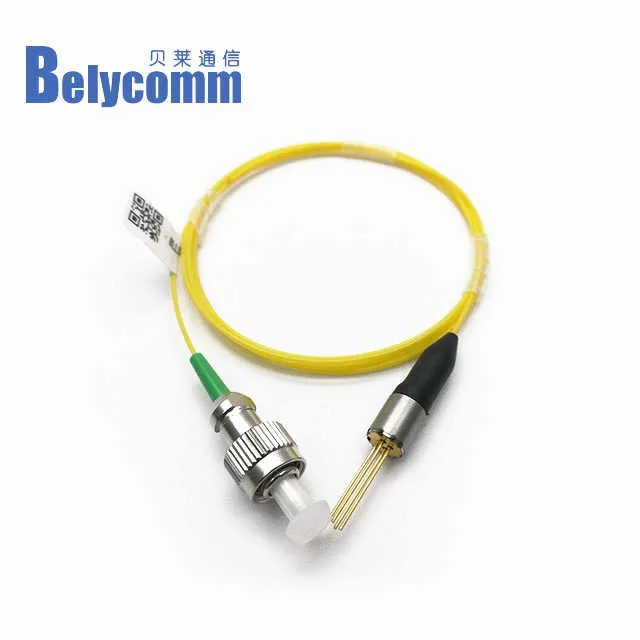

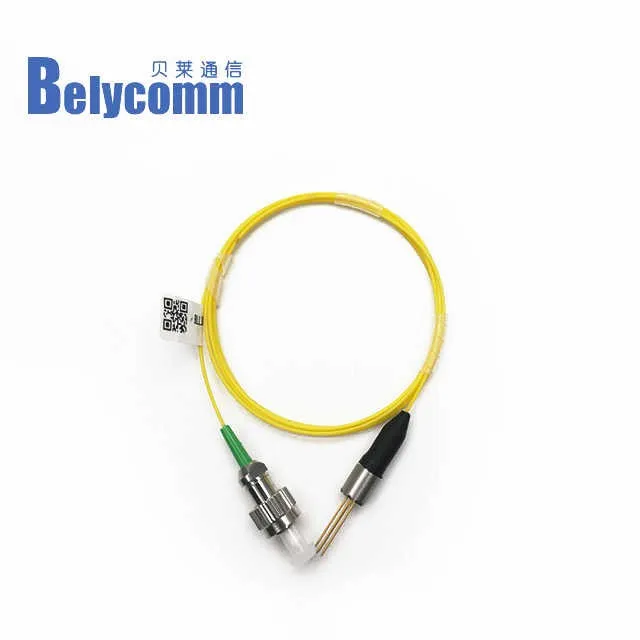

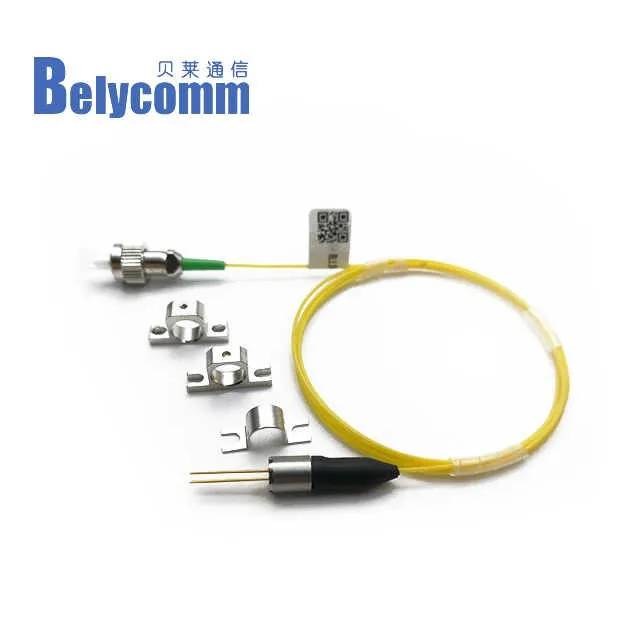

1310nm 10mW Coaxial Laser Module
Model Number: BLLD-PFA2-F31100B-2GR
Brand Name: Belycomm
Mounting Type: unniversual type
Description: Coaxial laser diode
Type: Laser Diode
- Product Introduction
Video Description
Key attributes
| Model Number | BLLD-PFA2-F31100B-2GR |
| Brand Name | Belycomm |
| Mounting Type | unniversual type |
| Description | Coaxial laser diode |
| Type | Laser Diode |
| Place of Origin | Fujian, China |
| Package Type | Surface Mount |
| Package / Case | Surface Mount |
| Operating Temperature | -20~70℃ |
| Supplier Type | original manufacturer, ODM, agency, retailer |
| Media Available | datasheet, Photo |
| Max. Reverse Voltage | 2V |
| Max. Forward Current | 100mA |
| Connector | FC/APC |
| Power | 10mW |
| Wavelength | 1310nm |
| Date rate | 2.5Gb/s |
Packaging and delivery
| Selling Units | Single item |
| Single package size | 20X14X5 cm |
| Single gross weight | 0.250 KG |
Lead time
| Quantity (pieces) | 1 - 100 | 101 - 1000 | 1001 - 10000 | > 10000 |
| Lead time (days) | 5 | 7 | 15 | To be negotiated |
Specification
Features
* 1310nm direct modulation with FP-LD as Transmitter
* Low noise, Low distortion Low threshold current
* Built-in InGaAs/PIN monitor
* High reliability,Long operation life
Applications
* Optical Transmitter of Analog Signal
* Optical Bidi Module and Optical transceivers
* Test Equipment
Specification
Absolute Maximum Ratings (Tc=25℃)
|
Parameter |
Symbol |
Ratings |
Unit |
Notes |
Unit |
|
Reverse Voltage(LD) |
Vr(LD) |
2 |
V |
CW |
V |
|
Forward Current(LD) |
If(LD) |
100 |
mA |
CW |
mA |
|
Reverse Voltage(MPD) |
Vr(PD) |
15 |
V |
CW |
V |
|
Forward Current(MPD) |
If(PD) |
2 |
mA |
CW |
mA |
|
Storage Temperature |
Tstg |
-40~ +85 |
℃ |
- |
℃ |
|
Operating Temperature |
Topr |
-20~ +70 |
℃ |
℃ |
|
|
Lead Soldering Temperature/Time |
Ts |
260/10 |
℃/S |
- |
℃/S |
|
Fiber Yield Strength |
- |
1 |
kgf |
- |
mm |
|
Fiber Bend Radius |
- |
60 |
mm |
- |
Transmitter Optical and Electrical Characteristics (Tc=25℃)
|
Parameter |
Symbol |
Min |
Type |
Max |
Unit |
Test Condition |
|
Threshold Current |
Ith |
3 |
- |
15 |
mA |
CW |
|
- |
- |
50 |
mA |
CW,T=85℃ |
||
|
Operating Voltage |
Vf |
- |
1.1 |
1.5 |
V |
- |
|
Optical Output Power |
Pf |
- |
10 |
- |
mW |
CW, If=55~65mA |
|
Center Wavelength |
λc |
1290 |
1310 |
1330 |
nm |
CW, If=Ith+20mA |
|
Rise/Fall Time(20-80%) |
Tr/Tf |
- |
- |
120 |
pS |
If=Ith, Po=Pf, 50 Ohm |
|
Monitor Current |
Im |
100 |
- |
1000 |
uA |
CW, If=Ith+20mA |
|
Capacitance |
C |
- |
10 |
15 |
PF |
VRD=5V, f=1MHz |
|
Dark Current |
Id |
- |
- |
100 |
nA |
VRD=5V |
|
Slope Efficiency |
SE |
0.17 |
- |
- |
W/A |
CW, If=Ith+20mA |
|
Tracking Error |
TE |
-1.5 |
- |
1.5 |
dB |
CW, Im=Constant & |
|
Bandwidth |
BW |
2 |
- |
- |
GHz |
|
|
Optical Isolation |
ISO |
30 |
- |
- |
dB |
|
|
Relative Intensity Noise |
RIN |
- |
- |
-130 |
dB/Hz |
Outline Diagram and Pin Assignments
Order Information
|
X |
X |
-X |
X |
X |
X |
-X |
X |
R |
|
Type connector |
Assembly model |
LD |
Transmitter |
Power |
LD |
Date rate |
Isolator |
A&V ROHS |
|
F:FC/UPC |
1: Type 1 |
D:DFB |
27:1270nm |
20:2.0mW |
A:type A |
2:2.5Gb/s |
G:isolator |
R:pass ROHS |
