10G APD-TIA Photodiode PD 3.3V FC/APC With Vpd 5PIN Pigtails ROSA Product 1100-1650nm 10GbE
Features： Long wavelength operation 3.3V low-voltage operation Coaxial Package, High reliability And Long operation life meeting EU RoHS requirements Applications： 10 Gigabit Ethernet 10GbE SR/LR/ER Transceivers
- Product Introduction
Absolute Maximum Ratings (Tc=25℃)
| Parameter | Symbol | Ratings | Unit |
| 储存温度 Storage Temperature |
Tstg | -40~+85 | ºC |
| 工作温度 Operating Case Temperature |
Top | -40~+85 | ºC |
| 焊料回流温度 Solder Reflow Temperature |
Stemp | 260/10 | ºC/s |
Optical and Electrical Characteristics (Tc=25℃)
| Parameter | Symbol | Min | Type | Max | Unit | Test condition |
| Operating Wavelength | λ | 1100 | - | 1650 | nm | |
| Supply Voltage | Vcc | 2.97 | 3.3 | 3.63 | V | |
| Supply Current | Icc | - | 27 | 35 | mA | Vcc=3.3V |
| Dark Current | Id | - | - | 100 | nA | Vr=Vbr-3 |
| Operation current | Iop | 4 | 5 | - | μA | Pin=1μW;λ=1577nm;Vop=Vbr-3 |
| Bandwidth (-3dBm) | BW | 7 | 8 | - | GHz | Pin=-20dBm,M=9, λ=1310nm |
| Sensitivity | Sen | - | -16.5 | -15.5 | dBm | BER=10 -3 ,ER=6dB, PRBS=2 31 -1@10Gbps,λ=1310nm |
| Output Loading | Rload | - | 100 | - | Ω | Recommended differential output loading |

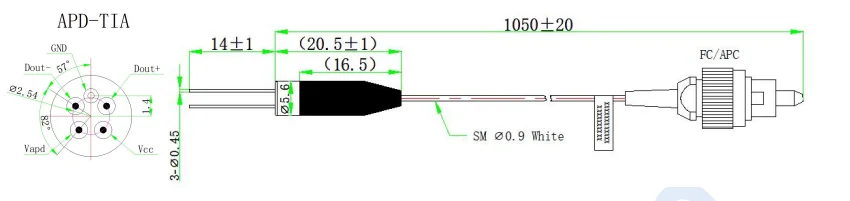

Outline Diagram and Pin Assignments
