Belycomm InGaAs 14-Pin Butterfly APD Model 909APD-08FA-14D For OTDR Test Avalanche Photodiode
Features: Wide dynamic range High Responsibility Low Dark Current14-pin butterfly package Built-in thermistor, and TEC Operating Temperature –20~ +70℃ Single-mode fiber pigtail Applications: RoF Long-haul optical networks WDM, ATM Fiber-optic Datacom
- Product Introduction
Absolute Maximum Ratings (Tc=25℃)
| Parameter | Symbol | Min | Max | Unit | Condition | Test Condition |
| Operating Temperature Range | Tc | -20 | +70 | ºC | Continuous | - |
| Storage Temperature Range | TSTG | -40 | +85 | ºC | Continuous | - |
| TEC voltage | VTEC | - | 4.2 | V | - | - |
| TEC Current | ITEC | - | 1.8 | A | - | - |
| Lead solder Temperature | - | - | 260 | °C | - | - |
| Lead Soldering Time | - | - | 10 | s | - | - |
Optical and Electrical Characteristics (Tc=25℃)
| Parameter | Symbol | Min | Type | Max | Unit | Test Condition |
| Responsibility | Re | - | 0.85 | - | A/W | λ= 1550nm |
| Optical Wavelength Range | λ | 1000 | 1550 | 1680 | nm | - |
| Breakdown Voltage | VBR | 40 | - | 50 | V | Tc=25℃ , ID=10uA |
| Dark Current | ID | - | - | 5 | nA | Tc=25℃ , VR=VBR-3V |
| Photosensitive Diameter | Φ | - |
50 | - |
Um | - |
| Thermistor Resistance | RTH | 9.5 | 10.0 | 10.5 | KΩ | T=25 °C |
| Thermistor B-Value | β | - | 3950 | - | K | 25℃/85℃ |

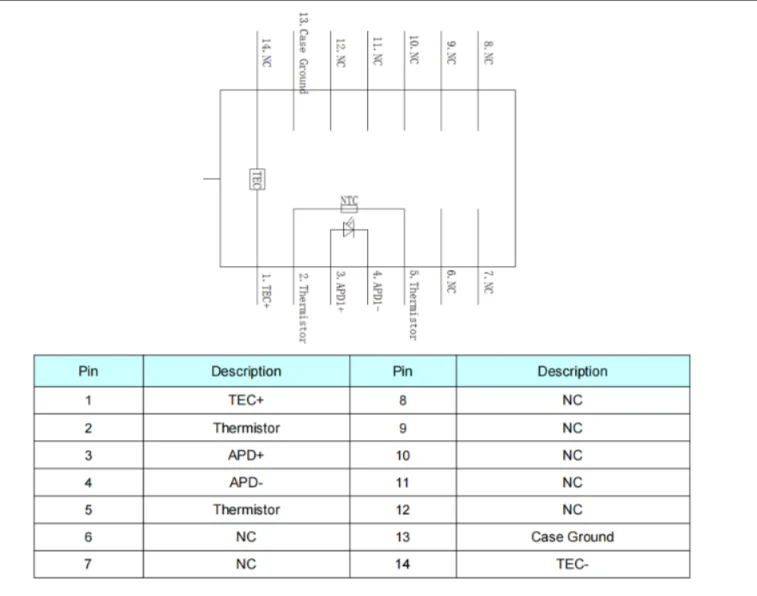

Outline Diagram and Pin Assignment
