MINI TO25 InGaAs PIN-PD Photodiode Device With FC/APC Connector 80um 1100~1650nm Spectral Response
Features High responsivity,Low return loss Low dark current, Low capacitance Laser Welding, High reliability And Long operation life InGaAs PIN-PD as Receiver
- Product Introduction
Absolute Maximum Ratings (Tc=25℃)
| Parameter | Symbol | Min. | Type | Max. | Unit | Test Condition |
| Saturation power | Ps | 3 | - | - | dBm | - |
| Forward Current | If | - | - | 10 | mA | - |
| Reverser Voltage | Vr | - | 5 | 15 | V | - |
| Operating Case Temperature | Top | -40 | - | +85 | ºC | - |
| Storage Temperature | Tstg | -40 | - | +85 | ºC | - |
| Lead Soldering(Temperature/Time) | - | - | 260/10 or 360/5 | - | ºC/Sec | - |
Optical and Electrical Characteristics (Tc=25℃)
| Parameter | Symbol | Min. | Type | Max. | Unit | Test condition |
| Operating Wavelength | λ | 1100 | - | 1650 | nm | |
| Responsivity | R | 0.85 | - | - | A/W | Vr=5V,λ=1550nm |
| Dark Current | Id | - | - | 1 | nA | Vr=5V |
| Capacitance | C | - | - | 0.75 | pF | Vr=5V,f=1MHz,case open |
| Bandwidth | Bw | - | 1.25 | - | GHz | Vr=5V,50Ωload with lead length=6mm,case open |
| Optical Return Loss | RL | 40 | 45 | - | dB | λ=1550nm |

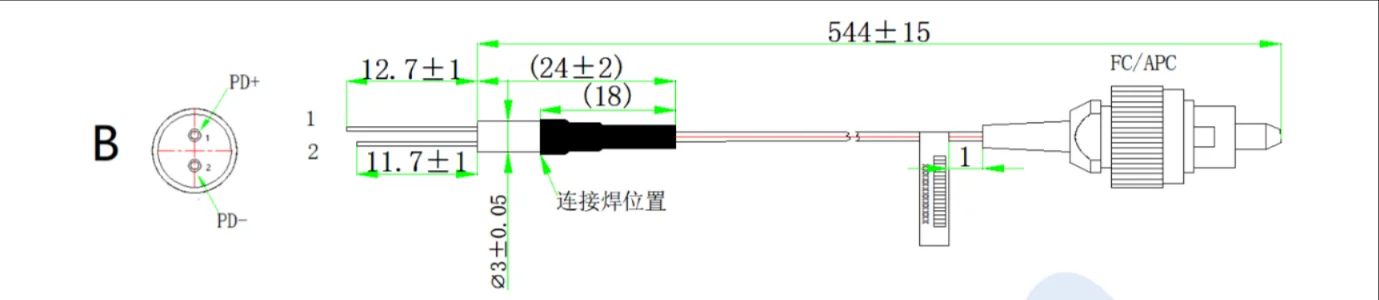

Outline Diagram and Pin Assignment
