2.5G 8mW Laser Diode 1310nm FP With 6.6mm Focus Length TO56 Package And 2.0mm Glass Lens
Features Data rate up to 2.5Gbps. Uncooled FP chips with MQW structure. Good high temperature characteristics. TO56 package with a Φ2.0mm glass lens. RoHS compliant and lead-free.
- Product Introduction
Electrical and Optical Characteristics (Tc=25 ℃ ,Po=5mW,unless otherwise specified)
| Parameter | Symbol | Min | Type | Max | Unit | Test Condition |
| Center Wavelength | λc | 1290 | 1310 | 1330 | nm | CW |
| Threshold current | Ith | 10 | 15 | mA | CW, 25℃ | |
| 30 | mA | CW, 85℃ | ||||
| Optical Power Options | Po | 6.0 | mW | CW, Iop=Ith+20mA | ||
| Operating voltage | Vop | 1.2 | 1.5 | V | CW, Iop=50mA | |
| Monitoring output current | Im | 100 | 1000 | μA | CW, Iop=Ith+20mA | |
| Dark current (PD) | Id | 100 | nA | VRD= 10V | ||
| Slope efficiency | SE | 0.25 | W/A | CW, Iop=Ith+20mA | ||
| Spectrum width | △λ | 2 | nm | CW, Iop=Ith+20mA | ||
| Rise and fall time | Tr,Tf | 0.2 | 0.3 | ns |
Iop=Ith+20mA, 20~80% | |
| Beam divergence angle | 8// | 20 | 23 | Deg | CW, Iop=Ith+20mA |
|
| 8丄 | 23 | 26 | Deg | |||
| Focus length | F | 6.3 | 6.6 | 6.9 | mm |

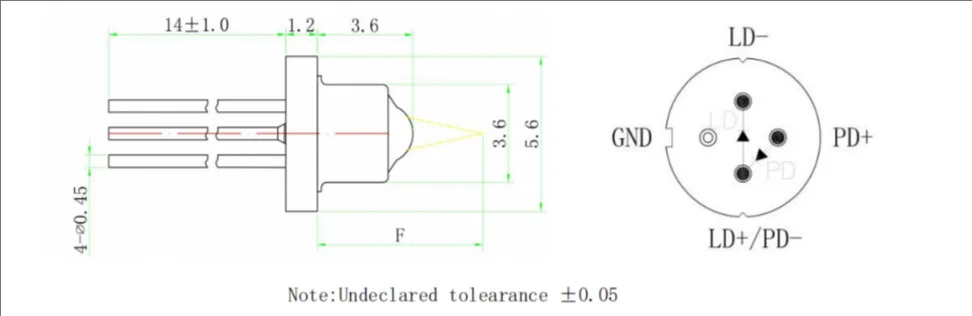

Outline Diagram and Pin Assignment
