FBT Modular Optical Splitter 1x2 SC/APC Wavelength 1260nm~1650nm 50:50 Split Ratio PLC G657A1 Fiber 1m Length
Features： Low insertion loss Low PDL Excellent environmental reliability Applications: Network system Fiber-Optic instruments FTTX
- Product Introduction
Optical and Electrical Characteristics(Tc=25℃)
| Specification | Specification | Unit |
| Operating wavelength | 1260~1650 | nm |
| Split Ratio | 50:50 | -- |
| Insertion loss | ≤0.20 ≤3.6 | dB |
| Uniformity | ≤0.5 | dB |
| PDL | ≤0.2 | dB |
| Directivity | ≤0.05 ≥50 | dB |
| Return loss | ≥50 | dB |
| Operating temperature | -40~+85 | °C |
| Storage temperature | -40~+85 | °C |
| Maximum Power Handling | >300 | mW |
| Bending Radius Of Optical Fiber | ≥15 | mm |
| Fiber Type | G657A1 | -- |
| Package dimensions | φ3*56 | mm |

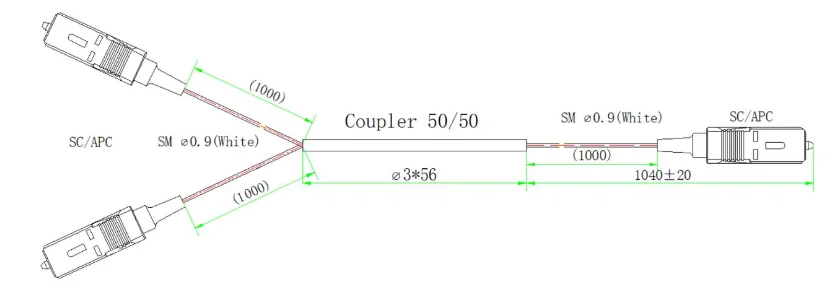

Mechanical Dimension
Ordering Information
BLCP-1*2-0.9-WHITE-50/50-SA/SA/SA-1m
