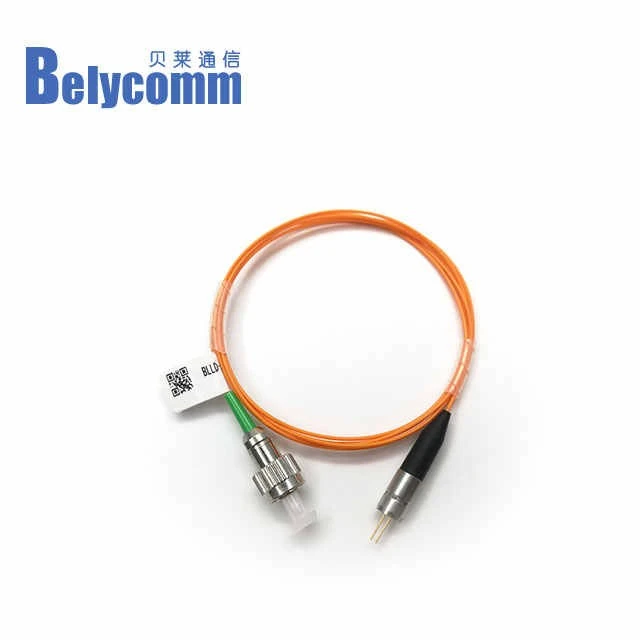

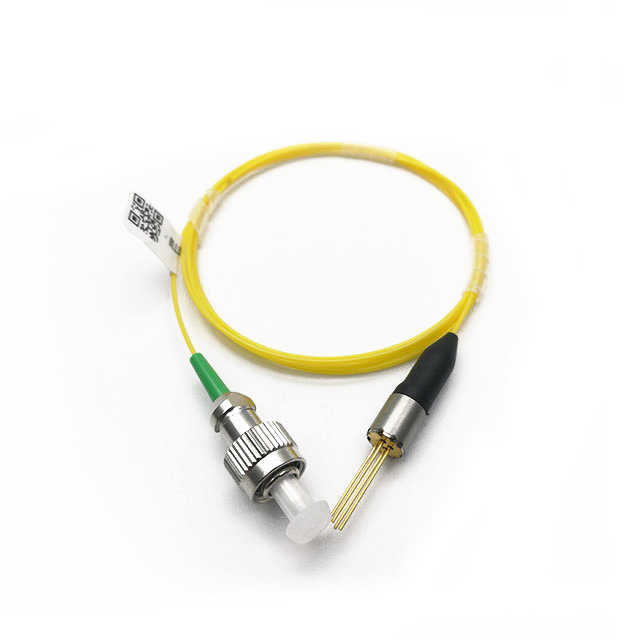

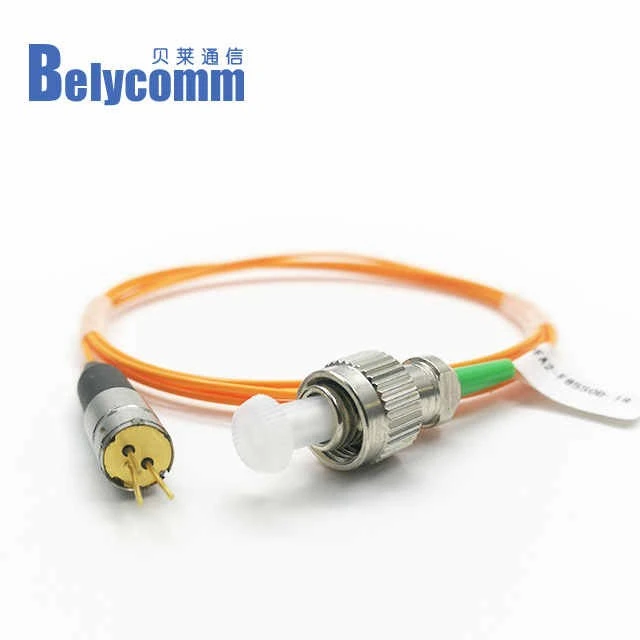

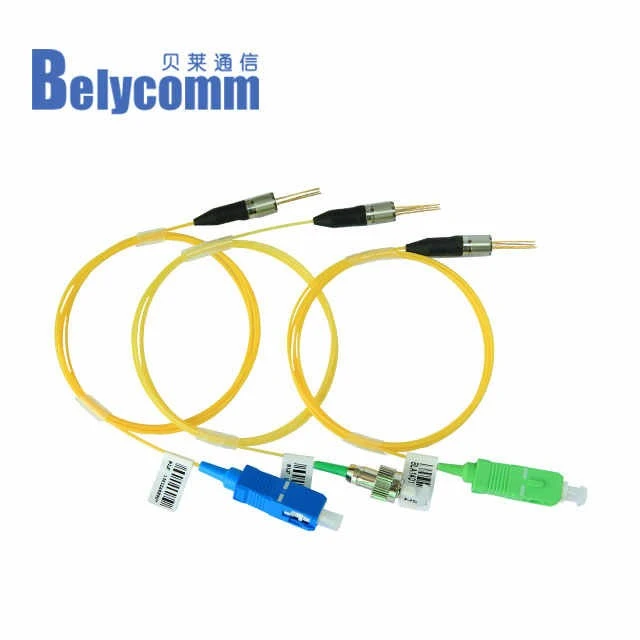

Analog 10G CWDM DFB Laser
Model Number: BLLD-PFA2-D55100A-10GR
Brand Name: Belycomm
Mounting Type: unniversual type
Description: Coaxial laser diode
Type: Laser Diode
- Product Introduction
Video Description
Key attributes
| Model Number | BLLD-PFA2-D55100A-10GR |
| Brand Name | Belycomm |
| Mounting Type | unniversual type |
| Description | Coaxial laser diode |
| Type | Laser Diode |
| Place of Origin | Fujian, China |
| Package Type | Through Hole |
| Package / Case | Coaxial |
| Operating Temperature | -20~70℃ |
| Application | Gas Detector |
| Supplier Type | original manufacturer, ODM, agency, retailer |
| Media Available | datasheet, Photo |
| Max. Forward Voltage | Customized |
| Max. Reverse Voltage | 2V |
| Max. Forward Current | 100mA |
| Max. Reverse Current | Customized |
| Diode Type | Customized |
| Technology | Customized |
| Voltage - Peak Reverse (max) | Customized |
| Current - Average Rectified (Io) | Customized |
| Current - Reverse Leakage @ Vr | universual type |
| Voltage - DC Reverse (Vr) (Max) | 2V |
| Current - Average Rectified (Io) (per Diode) | Customized |
| Speed | Not Applicable |
| Reverse Recovery Time (trr) | Customized |
| Capacitance @ Vr, F | Customized |
| Current - Max | Customized |
| Resistance @ If, F | Customized |
| Power Dissipation (Max) | Customized |
| Capacitance Ratio | Customized |
| Capacitance Ratio Condition | Customized |
| Q @ Vr, F | Not Applicable |
| Configuration | Customized |
| Voltage - Zener (Nom) (Vz) | Customized |
| Tolerance | Customized |
| Power - Max | 3mW |
| Impedance (Max) (Zzt) | Customized |
| Wavelength | 1550nm |
| Power | 10mW |
| Date rate | 10Gb/s |
| Operating Voltage | 1.2V |
| Reverse Voltage(MPD) | 15V |
| Forward Current(MPD) | 2mA |
| Dark Current | 100nA |
| Application | sensing |
| Application 2 | Range finder |
Packaging and delivery
| Selling Units | Single item |
| Single package size | 29X22.5X5.5 cm |
| Single gross weight | 1.000 KG |
Lead time
| Quantity (pieces) | 1 - 10 | 11 - 100 | 101 - 1000 | > 1000 |
| Lead time (days) | 10 | 14 | 21 | To be negotiated |
Products Description
Features
- 1550nm direct modulation with DFB-LD as Transmitter
- Low noise, Low distortion Low threshold current
- Built-in InGaAs/PIN monitor
- High reliability,Long operation life
Applications
- Optical Transmitter of Analog Signal
- Optical Bidi Module and Optical transceivers
- Test Equipment
Specification
Absolute Maximum Ratings (Tc=25℃)
| Parameter |
Symbol |
Min |
Type |
Max |
Unit |
|
Reverse Voltage(LD) |
Vr(LD) |
- |
- |
2 |
V |
|
Forward Current(LD) |
If(LD) |
- |
- |
100 |
mA |
|
Reverse Voltage(MPD) |
Vr(PD) |
- |
- |
15 |
V |
|
Forward Current(MPD) |
If(PD) |
- |
- |
2 |
mA |
|
Storage Temperature |
Tstg |
-40 |
- |
+85 |
℃ |
|
Operating Temperature |
Topr |
-20 |
- |
70 |
℃ |
|
Lead Soldering Temperature/Time |
Ts |
- |
260/10 or 360/5 |
- |
℃/S |
|
Fiber Bend Radius |
R |
30 |
- |
- |
mm |
Transmitter Optical and Electrical Characteristics (Tc=25℃)
|
Parameter |
Symbol |
Min |
Type |
Max |
Unit |
Test Condition |
|
Threshold Current |
Ith |
3 |
- |
15 |
mA |
CW |
|
- |
- |
50 |
mA |
CW,T=85℃ |
||
|
Operating Voltage |
Vf |
- |
1.1 |
1.5 |
V |
- |
|
Optical Output Power |
Pf |
- |
10 |
- |
mW |
CW, If=60~75mA |
|
Center Wavelength |
λ |
1540 |
1550 |
1560 |
nm |
CW, If=Ith+20mA |
|
Rise/Fall Time(20-80%) |
Tr/Tf |
- |
- |
200 |
pS |
If=Ith, Po=Pf, 50 Ohm |
|
Capacitance |
C |
- |
10 |
15 |
PF |
VRD=5V, f=1MHz |
|
Dark Current |
Id |
- |
- |
100 |
nA |
VRD=5V |
|
Spectral Width(-3dB) |
Δλ |
- |
0.5 |
1.0 |
nm |
CW, If=Ith+20mA |
|
Slope Efficiency |
SE |
0.15 |
- |
- |
W/A |
CW, If=Ith+20mA |
|
Tracking Error |
TE |
-1.5 |
- |
1.5 |
dB |
CW, Im=Constant & |
|
Bandwidth |
BW |
8 |
10 |
- |
GHz |
|
|
Side Mode |
SMSR |
30 |
- |
- |
dB |
CW, If=Ith+20mA |
|
Optical Isolation |
Iso |
30 |
- |
- |
dB |
- |
|
Relative Intensity Noise |
RIN |
- |
- |
-130 |
dB/Hz |
- |
Order Information
|
X |
X |
-X |
X |
X |
X |
-X |
X |
R |
|
Type connector |
Assembly model |
LD |
Transmitter |
Power |
LD |
Date rate |
Isolator |
A&V ROHS |
|
F:FC/UPC |
1: Type 1 |
D:DFB |
27:1270nm |
20:2.0mW |
A:type A |
2:2.5Gb/s |
G:isolator |
R:pass ROHS |
