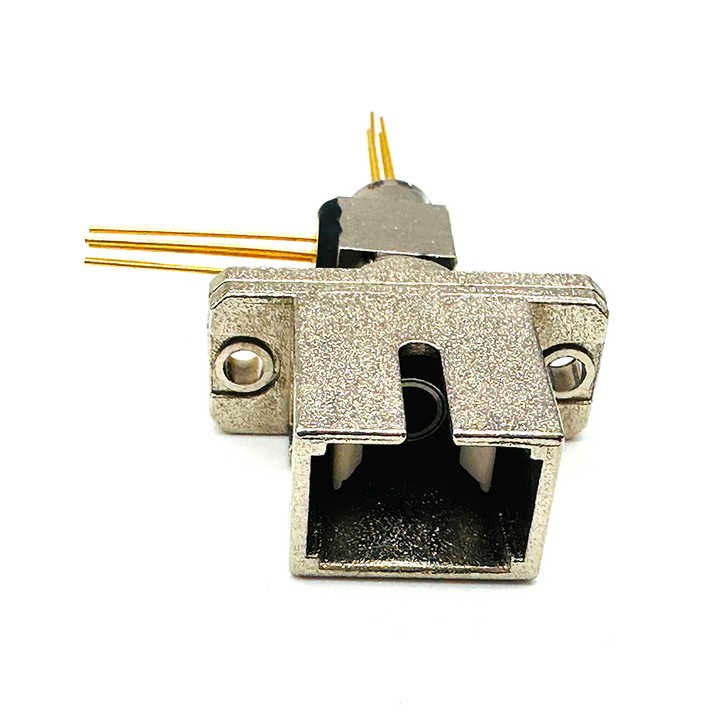

Receptacle Dual-Receiver BOSA





       Belycomm, a professional optical device supplier and original manufacturer, presents the Receptacle Dual-Receiver BOSA (Model: BLBD-R49/57B-FC(S)) – a pluggable laser diode module tailored for B2B optical communication projects. This module integrates high-performance InGaAs planar PIN detectors, making it an ideal choice for Dual-Receiver BOSA for analog optical receiver (e.g., FTTx networks, CATV systems) and test equipment Dual-Receiver BOSA scenarios.

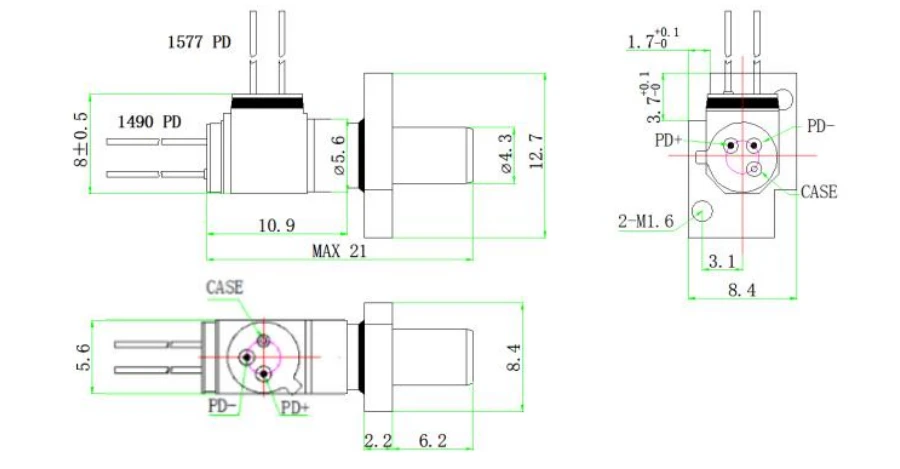

       Designed with a universal mounting type and coaxial package, the BLBD-R49/57B-FC(S) supports flexible integration into your production lines, while laser welding technology ensures high reliability And Long operation life – a critical advantage for reducing your post-purchase maintenance costs. As a trusted Dual-Receiver BOSA ODM supplier, we cater to diverse procurement needs: whether you need a single sample for performance testing, small-batch orders for trial production, or large-scale bulk order Dual-Receiver BOSA for mass production, we provide customized solutions to match your project scale.





Advantage	Technical Foundation	Procurement Value
High Signal Stability	High responsivity (≥0.8 A/W) (at 1490nm/1577nm, VR=5V) low dark current (0.1-1nA, VR=5V, 25℃)	Minimizes signal loss in analog optical receivers, ensuring stable operation of your industrial systems and reducing downtime risks.
Low Interference	Low capacitance (≤6 pF) (VR=5V, 25℃)	Avoids signal crosstalk, guaranteeing accurate data output for test equipment – essential for R&D and quality inspection processes.
Durable & Reliable	Coaxial Package Laser Welding	Extends product lifespan, lowers replacement frequency, and reduces your total cost of ownership (TCO).
Harsh Environment Adaptability	-20~+70℃ operating temperature (case temperature) -40~+85℃ storage temperature (ambient temperature)	Eliminates the need for additional temperature control components in outdoor communication cabinets or industrial workshops, simplifying system design.
Easy Production Integration	Through Hole package Lead soldering temperature compatibility (260℃/10s or 360℃/5s)	Meets IEC industrial soldering standards, enabling seamless assembly into your existing production lines without custom tooling.



Parameter	Symbol	Min	Type	Max	Unit	Notes
Saturation power	Ps	6	-	-	dBm
Reverse Voltage	VR	-	5	30	V
Forward Current	If	-	-	10	mA
Storage Temperature	Tstg	-40	-	+85	℃	Ambient Temperature
Operating Temperature	Topr	-20	-	+70	℃	Case Temperature
Lead Soldering Temperture/Time	Ts	-	260/10 or 360/5	-	℃/S



1490nm Receiver
Parameter	Symbol	Min	Type	Max	Unit	Test Condition
Active Area	φ	-	300	-	μm
Wavelength	λc	1100	-	1500	nm
Capacitance	C	-	-	6	pF	VR=5V,25°C
Dark current	Id	-	0.1	1	nA	VR=5V,25°C
Responsivity	Res	0.8	-	-	A/W	VR=5V,λc=1490nm
Isolation	ISO	30	-	-	dB	λc=1577nm



1577nm Receiver
Parameter	Symbol	Min	Type	Max	Unit	Test Condition
Active Area	φ	-	300	-	μm
Wavelength	λc	1550	-	1650	nm
Capacitance	C	-	-	6	pF	VR=5V,25°C
Dark current	Id	-	0.1	1	nA	VR=5V,25°C
Responsivity	Res	0.8	-	-	A/W	VR=5V,λc=1577nm
Isolation	ISO	30	-	-	dB	λc=1490nm











We understand B2B procurement requires flexibility and transparency. Below is the detailed support for buy Receptacle Dual-Receiver BOSA from Belycomm:

Quantity (Pieces)	Lead Time (Days)	Procurement Scenario
1-10	8-10	Sample order: For performance testing, compatibility verification, or R&D trials.
11-100	14-25	Small-batch production: Ideal for trial runs or urgent supplementary inventory.
101-1000	30-45	Mass production support: Stable supply for large-scale project deployment.
＞1000	To be negotiated	Customized schedule: Aligns with your annual production plan (e.g., quarterly/half-yearly delivery).

• Selling Units: Single item
• Single Package Size: 20.0×14.0×5.0 cm (flexible packaging, preventing damage during bulk shipment)

• Single Gross Weight: 0.050 KG

• Shipping Options: DHL, FedEx, UPS, or sea freight (negotiable for bulk orders to reduce logistics costs)



• MOQ (Minimum Order Quantity): 10 pieces (supports small-scale testing without high initial investment)

• Payment Terms: T/T, Alipay (customizable for annual framework agreements)

• Documentation: Free datasheet, RoHS certificate, and quality inspection report (provided with each order)
